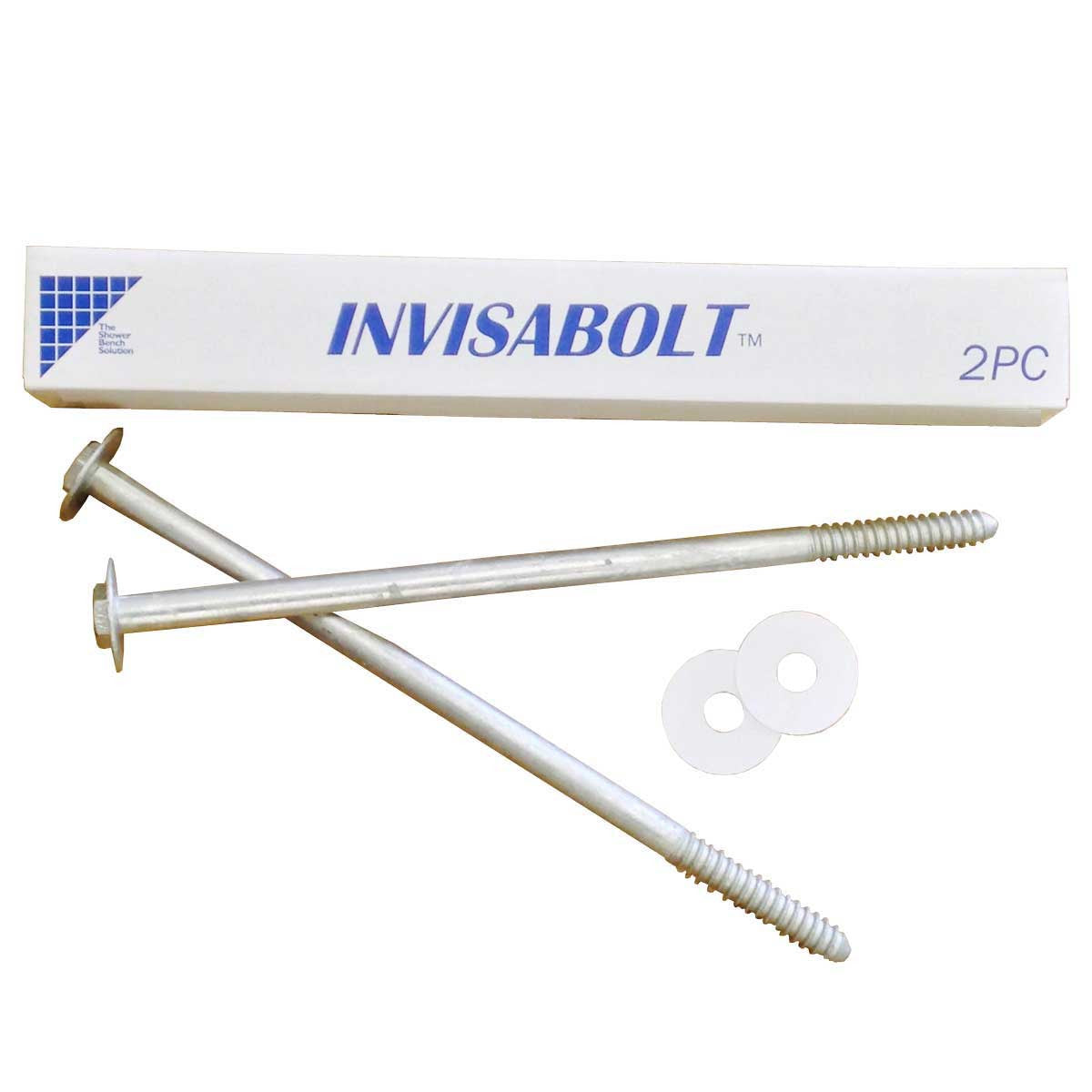

Innovis INVISABOLT for BB-ADJ

Adjustable for up to 5 feet!

Better-Bench is engineered for a 400 lb load capacity.Better Bench is designed to be long lasting & corrosion resistant. It can be used in wet or dry locations; mount to any ICBO approved substrate material. Sold in a pack of 2.

TO DETERMINE SUPPORT REQUIREMENT:

• Mounting wall to wall up to 36: No additional support required
• Mounting wall to wall up to 63: One(1) BT-17S centered in span OR Two(2) Invisabolt supports
• Mounting on a back wall and one side wall up to 36: One(1) BT-17S within 6 of open-end OR 2 Invisabolt supports
• Mounting on a back wall and one side wall up to 63: Three(3) Invisabolt supports required
• Mounting with no side support up to 36: Two(2) Invisabolt supports required
• Mounting with no side support up to 48: Three(3) Invisabolt supports required
• Mounting with no side support up to 63 max span: Four(4) Invisabolt supports required

*** 4×6 Minimum structural wood blocking must be installed flush to the front face of studs before placement of tile substrate when using the Invisabolt Support system***

See Invisabolt Installation
